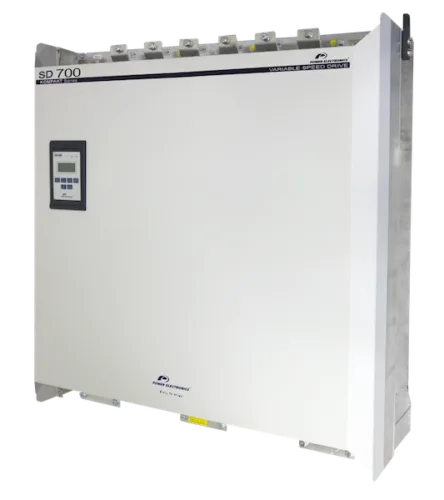

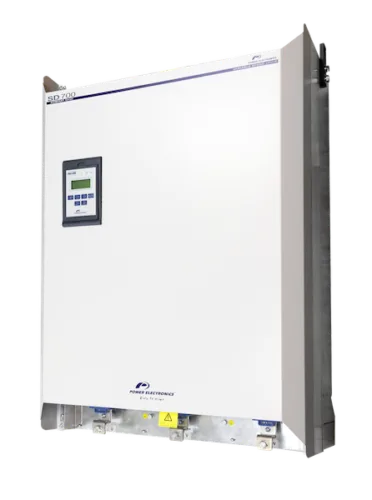

The SD700 Compact series, with a power density of 800kW/m3, is the most logical solution for limited space. The SD700K frequency inverter retains the core and advanced features of the SD700 series, while the size has been reduced by up to 2.5 times. This product is particularly suitable for professional project engineers who want to execute their projects freely and competitively. Using a contactor connection concept, the frequency inverter has power connection at the top and motor connection at the bottom.

The device is supplied in two IP00 parts – the frequency inverter and input choke. Following Power Electronics recommendations, the customer can easily install the required components into the designated control cabinet or technical room.
